Datasheet | PART NO. | Picture | Product Status | VRRM (VPK) | IF(AV) (A) | IFSM Max (A) | VF (V) | @IF (A) | Trr (ns) | Configuration | IR@25°C (µA) | TJ (°C) | Package | CAD Model | Configuration |
|
|
 |
USM101
|
 |
Active | 50 | 1 | 30 | 1 | 1 | 50 | Single | 5 | -65°C to +125°C | MELF (DO-213AB) | ||
|
|
|
USM102
|
 |
Active | 100 | 1 | 30 | 1 | 1 | 50 | Single | 5 | -65°C to +125°C | MELF (DO-213AB) | ||
|
|
|
USM103
|
 |
Active | 200 | 1 | 30 | 1 | 1 | 50 | Single | 5 | -65°C to +125°C | MELF (DO-213AB) | ||
|
|
|
USM104
|
 |
Active | 300 | 1 | 30 | 1 | 1 | 50 | Single | 5 | -65°C to +125°C | MELF (DO-213AB) | ||
|
|
|
USM105
|
 |
Active | 400 | 1 | 30 | 1.3 | 1 | 50 | Single | 5 | -65°C to +125°C | MELF (DO-213AB) | ||
|
|
|
USM106
|
 |
Active | 600 | 1 | 30 | 1.7 | 1 | 75 | Single | 5 | -65°C to +125°C | MELF (DO-213AB) | ||
|
|
|
USM107
|
 |
Active | 800 | 1 | 30 | 1.7 | 1 | 75 | Single | 5 | -65°C to +125°C | MELF (DO-213AB) | ||
|
|
|
USM108
|
 |
Active | 1000 | 1 | 30 | 1.7 | 1 | 75 | Single | 5 | -65°C to +125°C | MELF (DO-213AB) | ||
|
|
|
US1A
|
 |
Active | 50 | 1 | 30 | 1 | 1 | 50 | Single | 10 | -55°C to +150°C | SMA (DO-214AC) | ||
|
|
|
US1B
|
 |
Active | 100 | 1 | 30 | 1 | 1 | 50 | Single | 10 | -55°C to +150°C | SMA (DO-214AC) | ||
|
|
|
US1D
|
 |
Active | 200 | 1 | 30 | 1 | 1 | 50 | Single | 10 | -55°C to +150°C | SMA (DO-214AC) | ||
|
|
|
US1G
|
 |
Active | 400 | 1 | 30 | 1.3 | 1 | 50 | Single | 10 | -55°C to +150°C | SMA (DO-214AC) | ||
|
|
|
US1J
|
 |
Active | 600 | 1 | 30 | 1.7 | 1 | 75 | Single | 10 | -55°C to +150°C | SMA (DO-214AC) | ||
|
|
|
US1K
|
 |
Active | 800 | 1 | 30 | 1.7 | 1 | 75 | Single | 10 | -55°C to +150°C | SMA (DO-214AC) | ||
|
|
|
US1M
|
 |
Active | 1000 | 1 | 30 | 1.7 | 1 | 75 | Single | 10 | -55°C to +150°C | SMA (DO-214AC) | ||
|
|
|
US2A
|
 |
Active | 50 | 2 | 50 | 1 | 2 | 50 | Single | 5 | -65°C to +150°C | SMA (DO-214AC) | ||
|
|
|
US2B
|
 |
Active | 100 | 2 | 50 | 1 | 2 | 50 | Single | 5 | -65°C to +150°C | SMA (DO-214AC) | ||
|
|
|
US2D
|
 |
Active | 200 | 2 | 50 | 1 | 2 | 50 | Single | 5 | -65°C to +150°C | SMA (DO-214AC) | ||
|
|
|
US2G
|
 |
Active | 400 | 2 | 50 | 1.4 | 2 | 50 | Single | 5 | -65°C to +150°C | SMA (DO-214AC) | ||
|
|
|
US2J
|
 |
Active | 600 | 2 | 50 | 1.7 | 2 | 75 | Single | 5 | -65°C to +150°C | SMA (DO-214AC) | ||
|
|
|
US2K
|
 |
Active | 800 | 2 | 50 | 1.7 | 2 | 75 | Single | 5 | -65°C to +150°C | SMA (DO-214AC) | ||
|
|
|
US2M
|
 |
Active | 1000 | 2 | 50 | 1.7 | 2 | 75 | Single | 5 | -65°C to +150°C | SMA (DO-214AC) | ||
|
|
|
UF1A
|
 |
Active | 50 | 1 | 30 | 1 | 1 | 50 | Single | 5 | -65°C to +150°C | SMB (DO-214AA) | ||
|
|
|
UF1B
|
 |
Active | 100 | 1 | 30 | 1 | 1 | 50 | Single | 5 | -65°C to +150°C | SMB (DO-214AA) | ||
|
|
|
UF1D
|
 |
Active | 200 | 1 | 30 | 1 | 1 | 50 | Single | 5 | -65°C to +150°C | SMB (DO-214AA) | ||
|
|
|
UF1G
|
 |
Active | 400 | 1 | 30 | 1.4 | 1 | 50 | Single | 5 | -65°C to +150°C | SMB (DO-214AA) | ||
|
|
|
UF1J
|
 |
Active | 600 | 1 | 30 | 1.7 | 1 | 75 | Single | 5 | -65°C to +150°C | SMB (DO-214AA) | ||
|
|
|
UF1K
|
 |
Active | 800 | 1 | 30 | 1.7 | 1 | 75 | Single | 5 | -65°C to +150°C | SMB (DO-214AA) | ||
|
|
|
UF1M
|
 |
Active | 1000 | 1 | 30 | 1.7 | 1 | 75 | Single | 5 | -65°C to +150°C | SMB (DO-214AA) | ||
|
|
|
UF2A
|
 |
Active | 50 | 2 | 50 | 1 | 2 | 50 | Single | 5 | -65°C to +150°C | SMB (DO-214AA) | ||
|
|
|
UF2B
|
 |
Active | 100 | 2 | 50 | 1 | 2 | 50 | Single | 5 | -65°C to +150°C | SMB (DO-214AA) | ||
|
|
|
UF2D
|
 |
Active | 200 | 2 | 50 | 1 | 2 | 50 | Single | 5 | -65°C to +150°C | SMB (DO-214AA) | ||
|
|
|
UF2G
|
 |
Active | 400 | 2 | 50 | 1.4 | 2 | 50 | Single | 5 | -65°C to +150°C | SMB (DO-214AA) | ||
|
|
|
UF2J
|
 |
Active | 600 | 2 | 50 | 1.7 | 2 | 75 | Single | 5 | -65°C to +150°C | SMB (DO-214AA) | ||
|
|
|
UF2K
|
 |
Active | 800 | 2 | 50 | 1.7 | 2 | 75 | Single | 5 | -65°C to +150°C | SMB (DO-214AA) | ||
|
|
|
UF2M
|
 |
Active | 1000 | 2 | 50 | 1.7 | 2 | 75 | Single | 5 | -65°C to +150°C | SMB (DO-214AA) | ||
|
|
|
HER101G
|
 |
Active | 50 | 1 | 30 | 1 | 1 | 50 | Single | 5 | -65°C to +150°C | DO-41 (DO-204AL) | ||
|
|
|
HER102G
|
 |
Active | 100 | 1 | 30 | 1 | 1 | 50 | Single | 5 | -65°C to +150°C | DO-41 (DO-204AL) | ||
|
|
|
HER103G
|
 |
Active | 200 | 1 | 30 | 1 | 1 | 50 | Single | 5 | -65°C to +150°C | DO-41 (DO-204AL) | ||
|
|
|
HER104G
|
 |
Active | 300 | 1 | 30 | 1.3 | 1 | 50 | Single | 5 | -65°C to +150°C | DO-41 (DO-204AL) | ||
|
|
|
HER105G
|
 |
Active | 400 | 1 | 30 | 1.3 | 1 | 50 | Single | 5 | -65°C to +150°C | DO-41 (DO-204AL) | ||
|
|
|
HER106G
|
 |
Active | 600 | 1 | 30 | 1.7 | 1 | 75 | Single | 5 | -65°C to +150°C | DO-41 (DO-204AL) | ||
|
|
|
HER107G
|
 |
Active | 800 | 1 | 30 | 1.7 | 1 | 75 | Single | 5 | -65°C to +150°C | DO-41 (DO-204AL) | ||
|
|
|
HER108G
|
 |
Active | 1000 | 1 | 30 | 1.7 | 1 | 75 | Single | 5 | -65°C to +150°C | DO-41 (DO-204AL) | ||
|
|
|
HER101
|
 |
Active | 50 | 1 | 30 | 1 | 1 | 50 | Single | 5 | -65°C to +150°C | DO-41 (DO-204AL) | ||
|
|
|
HER102
|
 |
Active | 100 | 1 | 30 | 1 | 1 | 50 | Single | 5 | -65°C to +150°C | DO-41 (DO-204AL) | ||
|
|
|
HER103
|
 |
Active | 200 | 1 | 30 | 1 | 1 | 50 | Single | 5 | -65°C to +150°C | DO-41 (DO-204AL) | ||
|
|
|
HER104
|
 |
Active | 300 | 1 | 30 | 1.3 | 1 | 50 | Single | 5 | -65°C to +150°C | DO-41 (DO-204AL) | ||
|
|
|
HER105
|
 |
Active | 400 | 1 | 30 | 1.3 | 1 | 50 | Single | 5 | -65°C to +150°C | DO-41 (DO-204AL) | ||
|
|
|
HER106
|
 |
Active | 600 | 1 | 30 | 1.7 | 1 | 75 | Single | 5 | -65°C to +150°C | DO-41 (DO-204AL) | ||
|
|
|
HER107
|
 |
Active | 800 | 1 | 30 | 1.7 | 1 | 75 | Single | 5 | -65°C to +150°C | DO-41 (DO-204AL) | ||
|
|
|
HER108
|
 |
Active | 1000 | 1 | 30 | 1.7 | 1 | 75 | Single | 5 | -65°C to +150°C | DO-41 (DO-204AL) | ||
|
|
|
HER151G
|
 |
Active | 50 | 1.5 | 50 | 1 | 1.5 | 50 | Single | 5 | -65°C to +150°C | DO-15 (DO-204AC) | ||
|
|
|
HER152G
|
 |
Active | 100 | 1.5 | 50 | 1 | 1.5 | 50 | Single | 5 | -65°C to +150°C | DO-15 (DO-204AC) | ||
|
|
|
HER153G
|
 |
Active | 200 | 1.5 | 50 | 1 | 1.5 | 50 | Single | 5 | -65°C to +150°C | DO-15 (DO-204AC) | ||
|
|
|
HER154G
|
 |
Active | 300 | 1.5 | 50 | 1.3 | 1.5 | 50 | Single | 5 | -65°C to +150°C | DO-15 (DO-204AC) | ||
|
|
|
HER155G
|
 |
Active | 400 | 1.5 | 50 | 1.3 | 1.5 | 50 | Single | 5 | -65°C to +150°C | DO-15 (DO-204AC) | ||
|
|
|
HER156G
|
 |
Active | 600 | 1.5 | 50 | 1.7 | 1.5 | 75 | Single | 5 | -65°C to +150°C | DO-15 (DO-204AC) | ||
|
|
|
HER157G
|
 |
Active | 800 | 1.5 | 50 | 1.7 | 1.5 | 75 | Single | 5 | -65°C to +150°C | DO-15 (DO-204AC) | ||
|
|
|
HER158G
|
 |
Active | 1000 | 1.5 | 50 | 1.7 | 1.5 | 75 | Single | 5 | -65°C to +150°C | DO-15 (DO-204AC) | ||
|
|
|
HER201G
|
 |
Active | 50 | 2 | 60 | 1 | 2 | 50 | Single | 5 | -65°C to +150°C | DO-15 (DO-204AC) | ||
|
|
|
HER202G
|
 |
Active | 100 | 2 | 60 | 1 | 2 | 50 | Single | 5 | -65°C to +150°C | DO-15 (DO-204AC) | ||
|
|
|
HER203G
|
 |
Active | 200 | 2 | 60 | 1 | 2 | 50 | Single | 5 | -65°C to +150°C | DO-15 (DO-204AC) | ||
|
|
|
HER204G
|
 |
Active | 300 | 2 | 60 | 1.3 | 2 | 50 | Single | 5 | -65°C to +150°C | DO-15 (DO-204AC) | ||
|
|
|
HER205G
|
 |
Active | 400 | 2 | 60 | 1.3 | 2 | 50 | Single | 5 | -65°C to +150°C | DO-15 (DO-204AC) | ||
|
|
|
HER206G
|
 |
Active | 600 | 2 | 60 | 1.7 | 2 | 75 | Single | 5 | -65°C to +150°C | DO-15 (DO-204AC) | ||
|
|
|
HER207G
|
 |
Active | 800 | 2 | 60 | 1.7 | 2 | 75 | Single | 5 | -65°C to +150°C | DO-15 (DO-204AC) | ||
|
|
|
HER208G
|
 |
Active | 1000 | 2 | 60 | 1.7 | 2 | 75 | Single | 5 | -65°C to +150°C | DO-15 (DO-204AC) | ||
|
|
|
HER151
|
 |
Active | 50 | 1.5 | 50 | 1 | 1.5 | 50 | Single | 5 | -65°C to +150°C | DO-15 (DO-204AC) | ||
|
|
|
HER152
|
 |
Active | 100 | 1.5 | 50 | 1 | 1.5 | 50 | Single | 5 | -65°C to +150°C | DO-15 (DO-204AC) | ||
|
|
|
HER153
|
 |
Active | 200 | 1.5 | 50 | 1 | 1.5 | 50 | Single | 5 | -65°C to +150°C | DO-15 (DO-204AC) | ||
|
|
|
HER154
|
 |
Active | 300 | 1.5 | 50 | 1.3 | 1.5 | 50 | Single | 5 | -65°C to +150°C | DO-15 (DO-204AC) | ||
|
|
|
HER155
|
 |
Active | 400 | 1.5 | 50 | 1.3 | 1.5 | 50 | Single | 5 | -65°C to +150°C | DO-15 (DO-204AC) | ||
|
|
|
HER156
|
 |
Active | 600 | 1.5 | 50 | 1.7 | 1.5 | 75 | Single | 5 | -65°C to +150°C | DO-15 (DO-204AC) | ||
|
|
|
HER157
|
 |
Active | 800 | 1.5 | 50 | 1.7 | 1.5 | 75 | Single | 5 | -65°C to +150°C | DO-15 (DO-204AC) | ||
|
|
|
HER158
|
 |
Active | 1000 | 1.5 | 50 | 1.7 | 1.5 | 75 | Single | 5 | -65°C to +150°C | DO-15 (DO-204AC) | ||
|
|
|
HER201
|
 |
Active | 50 | 2 | 60 | 1 | 2 | 50 | Single | 5 | -65°C to +150°C | DO-15 (DO-204AC) | ||
|
|
|
HER202
|
 |
Active | 100 | 2 | 60 | 1 | 2 | 50 | Single | 5 | -65°C to +150°C | DO-15 (DO-204AC) | ||
|
|
|
HER203
|
 |
Active | 200 | 2 | 60 | 1 | 2 | 50 | Single | 5 | -65°C to +150°C | DO-15 (DO-204AC) | ||
|
|
|
HER204
|
 |
Active | 300 | 2 | 60 | 1.3 | 2 | 50 | Single | 5 | -65°C to +150°C | DO-15 (DO-204AC) | ||
|
|
|
HER205
|
 |
Active | 400 | 2 | 60 | 1.3 | 2 | 50 | Single | 5 | -65°C to +150°C | DO-15 (DO-204AC) | ||
|
|
|
HER206
|
 |
Active | 600 | 2 | 60 | 1.7 | 2 | 75 | Single | 5 | -65°C to +150°C | DO-15 (DO-204AC) | ||
|
|
|
HER207
|
 |
Active | 800 | 2 | 60 | 1.7 | 2 | 75 | Single | 5 | -65°C to +150°C | DO-15 (DO-204AC) | ||
|
|
|
HER208
|
 |
Active | 1000 | 2 | 60 | 1.7 | 2 | 75 | Single | 5 | -65°C to +150°C | DO-15 (DO-204AC) | ||
|
|
|
HER301G
|
 |
Active | 50 | 3 | 200 | 1 | 3 | 50 | Single | 10 | -65°C to +150°C | DO-201AD | ||
|
|
|
HER302G
|
 |
Active | 100 | 3 | 200 | 1 | 3 | 50 | Single | 10 | -65°C to +150°C | DO-201AD | ||
|
|
|
HER303G
|
 |
Active | 200 | 3 | 200 | 1 | 3 | 50 | Single | 10 | -65°C to +150°C | DO-201AD | ||
|
|
|
HER304G
|
 |
Active | 300 | 3 | 200 | 1.3 | 3 | 50 | Single | 10 | -65°C to +150°C | DO-201AD | ||
|
|
|
HER305G
|
 |
Active | 400 | 3 | 200 | 1.3 | 3 | 50 | Single | 10 | -65°C to +150°C | DO-201AD | ||
|
|
|
HER306G
|
 |
Active | 600 | 3 | 200 | 1.7 | 3 | 75 | Single | 10 | -65°C to +150°C | DO-201AD | ||
|
|
|
HER307G
|
 |
Active | 800 | 3 | 200 | 1.7 | 3 | 75 | Single | 10 | -65°C to +150°C | DO-201AD | ||
|
|
|
HER308G
|
 |
Active | 1000 | 3 | 200 | 1.7 | 3 | 75 | Single | 10 | -65°C to +150°C | DO-201AD | ||
|
|
|
HER401G
|
 |
Active | 50 | 4 | 200 | 1 | 4 | 50 | Single | 10 | -65°C to +150°C | DO-201AD | ||
|
|
|
HER402G
|
 |
Active | 100 | 4 | 200 | 1 | 4 | 50 | Single | 10 | -65°C to +150°C | DO-201AD | ||
|
|
|
HER403G
|
 |
Active | 200 | 4 | 200 | 1 | 4 | 50 | Single | 10 | -65°C to +150°C | DO-201AD | ||
|
|
|
HER404G
|
 |
Active | 300 | 4 | 200 | 1.3 | 4 | 50 | Single | 10 | -65°C to +150°C | DO-201AD | ||
|
|
|
HER405G
|
 |
Active | 400 | 4 | 200 | 1.3 | 4 | 50 | Single | 10 | -65°C to +150°C | DO-201AD | ||
|
|
|
HER406G
|
 |
Active | 600 | 4 | 200 | 1.7 | 4 | 75 | Single | 10 | -65°C to +150°C | DO-201AD | ||
|
|
|
HER407G
|
 |
Active | 800 | 4 | 200 | 1.7 | 4 | 75 | Single | 10 | -65°C to +150°C | DO-201AD | ||
|
|
|
HER408G
|
 |
Active | 1000 | 4 | 200 | 1.7 | 4 | 75 | Single | 10 | -65°C to +150°C | DO-201AD | ||
|
|
|
HER501G
|
 |
Active | 50 | 5 | 200 | 1 | 5 | 50 | Single | 10 | -65°C to +150°C | DO-201AD | ||
|
|
|
HER502G
|
 |
Active | 100 | 5 | 200 | 1 | 5 | 50 | Single | 10 | -65°C to +150°C | DO-201AD | ||
|
|
|
HER503G
|
 |
Active | 200 | 5 | 200 | 1 | 5 | 50 | Single | 10 | -65°C to +150°C | DO-201AD | ||
|
|
|
HER504G
|
 |
Active | 300 | 5 | 200 | 1.3 | 5 | 50 | Single | 10 | -65°C to +150°C | DO-201AD | ||
|
|
|
HER505G
|
 |
Active | 400 | 5 | 200 | 1.3 | 5 | 50 | Single | 10 | -65°C to +150°C | DO-201AD | ||
|
|
|
HER506G
|
 |
Active | 600 | 5 | 200 | 1.7 | 5 | 75 | Single | 10 | -65°C to +150°C | DO-201AD | ||
|
|
|
HER507G
|
 |
Active | 800 | 5 | 200 | 1.7 | 5 | 75 | Single | 10 | -65°C to +150°C | DO-201AD | ||
|
|
|
HER508G
|
 |
Active | 1000 | 5 | 200 | 1.7 | 5 | 75 | Single | 10 | -65°C to +150°C | DO-201AD | ||
|
|
|
HER301
|
 |
Active | 50 | 3 | 200 | 1 | 3 | 50 | Single | 10 | -65°C to +150°C | DO-201AD | ||
|
|
|
HER302
|
 |
Active | 100 | 3 | 200 | 1 | 3 | 50 | Single | 10 | -65°C to +150°C | DO-201AD | ||
|
|
|
HER303
|
 |
Active | 200 | 3 | 200 | 1 | 3 | 50 | Single | 10 | -65°C to +150°C | DO-201AD | ||
|
|
|
HER304
|
 |
Active | 300 | 3 | 200 | 1.3 | 3 | 50 | Single | 10 | -65°C to +150°C | DO-201AD | ||
|
|
|
HER305
|
 |
Active | 400 | 3 | 200 | 1.3 | 3 | 50 | Single | 10 | -65°C to +150°C | DO-201AD | ||
|
|
|
HER306
|
 |
Active | 600 | 3 | 200 | 1.7 | 3 | 75 | Single | 10 | -65°C to +150°C | DO-201AD | ||
|
|
|
HER307
|
 |
Active | 800 | 3 | 200 | 1.7 | 3 | 75 | Single | 10 | -65°C to +150°C | DO-201AD | ||
|
|
|
HER308
|
 |
Active | 1000 | 3 | 200 | 1.7 | 3 | 75 | Single | 10 | -65°C to +150°C | DO-201AD | ||
|
|
|
HER401
|
 |
Active | 50 | 4 | 200 | 1 | 4 | 50 | Single | 10 | -65°C to +150°C | DO-201AD | ||
|
|
|
HER402
|
 |
Active | 100 | 4 | 200 | 1 | 4 | 50 | Single | 10 | -65°C to +150°C | DO-201AD | ||
|
|
|
HER403
|
 |
Active | 200 | 4 | 200 | 1 | 4 | 50 | Single | 10 | -65°C to +150°C | DO-201AD | ||
|
|
|
HER404
|
 |
Active | 300 | 4 | 200 | 1.3 | 4 | 50 | Single | 10 | -65°C to +150°C | DO-201AD | ||
|
|
|
HER405
|
 |
Active | 400 | 4 | 200 | 1.3 | 4 | 50 | Single | 10 | -65°C to +150°C | DO-201AD | ||
|
|
|
HER406
|
 |
Active | 600 | 4 | 200 | 1.7 | 4 | 75 | Single | 10 | -65°C to +150°C | DO-201AD | ||
|
|
|
HER407
|
 |
Active | 800 | 4 | 200 | 1.7 | 4 | 75 | Single | 10 | -65°C to +150°C | DO-201AD | ||
|
|
|
HER408
|
 |
Active | 1000 | 4 | 200 | 1.7 | 4 | 75 | Single | 10 | -65°C to +150°C | DO-201AD | ||
|
|
|
HER501
|
 |
Active | 50 | 5 | 200 | 1 | 5 | 50 | Single | 10 | -65°C to +150°C | DO-201AD | ||
|
|
|
HER502
|
 |
Active | 100 | 5 | 200 | 1 | 5 | 50 | Single | 10 | -65°C to +150°C | DO-201AD | ||
|
|
|
HER503
|
 |
Active | 200 | 5 | 200 | 1 | 5 | 50 | Single | 10 | -65°C to +150°C | DO-201AD | ||
|
|
|
HER504
|
 |
Active | 300 | 5 | 200 | 1.3 | 5 | 50 | Single | 10 | -65°C to +150°C | DO-201AD | ||
|
|
|
HER505
|
 |
Active | 400 | 5 | 200 | 1.3 | 5 | 50 | Single | 10 | -65°C to +150°C | DO-201AD | ||
|
|
|
HER506
|
 |
Active | 600 | 5 | 200 | 1.7 | 5 | 75 | Single | 10 | -65°C to +150°C | DO-201AD | ||
|
|
|
HER507
|
 |
Active | 800 | 5 | 200 | 1.7 | 5 | 75 | Single | 10 | -65°C to +150°C | DO-201AD | ||
|
|
|
HER508
|
 |
Active | 1000 | 5 | 200 | 1.7 | 5 | 75 | Single | 10 | -65°C to +150°C | DO-201AD | ||
|
|
|
UF10005CT
|
 |
Active | 50 | 10 | 100 | 1 | 5 | 50 | Single | 10 | -55°C to +150°C | TO-220AB | ||
|
|
|
UF1001CT
|
 |
Active | 100 | 10 | 100 | 1 | 5 | 50 | Single | 10 | -55°C to +150°C | TO-220AB | ||
|
|
|
UF1002CT
|
 |
Active | 200 | 10 | 100 | 1 | 5 | 50 | Single | 10 | -55°C to +150°C | TO-220AB | ||
|
|
|
UF1003CT
|
 |
Active | 300 | 10 | 100 | 1.3 | 5 | 50 | Single | 10 | -55°C to +150°C | TO-220AB | ||
|
|
|
UF1004CT
|
 |
Active | 400 | 10 | 100 | 1.3 | 5 | 50 | Single | 10 | -55°C to +150°C | TO-220AB | ||
|
|
|
UF1006CT
|
 |
Active | 600 | 10 | 100 | 1.7 | 5 | 100 | Single | 10 | -55°C to +150°C | TO-220AB | ||
|
|
|
UF1008CT
|
 |
Active | 800 | 10 | 100 | 1.7 | 5 | 100 | Single | 10 | -55°C to +150°C | TO-220AB | ||
|
|
|
UF16005CT
|
 |
Active | 50 | 16 | 125 | 1 | 8 | 50 | Single | 10 | -55°C to +150°C | TO-220AB | ||
|
|
|
UF1601CT
|
 |
Active | 100 | 16 | 125 | 1 | 8 | 50 | Single | 10 | -55°C to +150°C | TO-220AB | ||
|
|
|
UF1602CT
|
 |
Active | 200 | 16 | 125 | 1 | 8 | 50 | Single | 10 | -55°C to +150°C | TO-220AB | ||
|
|
|
UF1603CT
|
 |
Active | 300 | 16 | 125 | 1.3 | 8 | 75 | Single | 10 | -55°C to +150°C | TO-220AB | ||
|
|
|
UF1604CT
|
 |
Active | 400 | 16 | 125 | 1.3 | 8 | 75 | Single | 10 | -55°C to +150°C | TO-220AB | ||
|
|
|
UF1606CT
|
 |
Active | 600 | 16 | 125 | 1.7 | 8 | 100 | Single | 10 | -55°C to +150°C | TO-220AB | ||
|
|
|
UF1608CT
|
 |
Active | 800 | 16 | 125 | 1.7 | 8 | 100 | Single | 10 | -55°C to +150°C | TO-220AB | ||
|
|
|
UF20005CT
|
 |
Active | 50 | 20 | 150 | 1 | 10 | 50 | Single | 10 | -55°C to +150°C | TO-220AB | ||
|
|
|
UF2001CT
|
 |
Active | 100 | 20 | 150 | 1 | 10 | 50 | Single | 10 | -55°C to +150°C | TO-220AB | ||
|
|
|
UF2002CT
|
 |
Active | 200 | 20 | 150 | 1 | 10 | 50 | Single | 10 | -55°C to +150°C | TO-220AB | ||
|
|
|
UF2003CT
|
 |
Active | 300 | 20 | 150 | 1.3 | 10 | 75 | Single | 10 | -55°C to +150°C | TO-220AB | ||
|
|
|
UF2004CT
|
 |
Active | 400 | 20 | 150 | 1.3 | 10 | 75 | Single | 10 | -55°C to +150°C | TO-220AB | ||
|
|
|
UF2006CT
|
 |
Active | 600 | 20 | 150 | 1.7 | 10 | 100 | Single | 10 | -55°C to +150°C | TO-220AB | ||
|
|
|
UF2008CT
|
 |
Active | 800 | 20 | 150 | 1.7 | 10 | 100 | Single | 10 | -55°C to +150°C | TO-220AB | ||
|
|
|
UFF10005CT
|
 |
Active | 50 | 10 | 100 | 1 | 5 | 50 | Single | 10 | -55°C to +150°C | ITO-220AB | ||
|
|
|
UFF1001CT
|
 |
Active | 100 | 10 | 100 | 1 | 5 | 50 | Single | 10 | -55°C to +150°C | ITO-220AB | ||
|
|
|
UFF1002CT
|
 |
Active | 200 | 10 | 100 | 1 | 5 | 50 | Single | 10 | -55°C to +150°C | ITO-220AB | ||
|
|
|
UFF1003CT
|
 |
Active | 300 | 10 | 100 | 1.3 | 5 | 50 | Single | 10 | -55°C to +150°C | ITO-220AB | ||
|
|
|
UFF1004CT
|
 |
Active | 400 | 10 | 100 | 1.3 | 5 | 50 | Single | 10 | -55°C to +150°C | ITO-220AB | ||
|
|
|
UFF1006CT
|
 |
Active | 600 | 10 | 100 | 1.7 | 5 | 100 | Single | 10 | -55°C to +150°C | ITO-220AB | ||
|
|
|
UFF1008CT
|
 |
Active | 800 | 10 | 100 | 1.7 | 5 | 100 | Single | 10 | -55°C to +150°C | ITO-220AB | ||
|
|
|
UFF16005CT
|
 |
Active | 50 | 16 | 125 | 1 | 8 | 50 | Single | 10 | -55°C to +150°C | ITO-220AB | ||
|
|
|
UFF1601CT
|
 |
Active | 100 | 16 | 125 | 1 | 8 | 50 | Single | 10 | -55°C to +150°C | ITO-220AB | ||
|
|
|
UFF1602CT
|
 |
Active | 200 | 16 | 125 | 1 | 8 | 50 | Single | 10 | -55°C to +150°C | ITO-220AB | ||
|
|
|
UFF1603CT
|
 |
Active | 300 | 16 | 125 | 1.3 | 8 | 75 | Single | 10 | -55°C to +150°C | ITO-220AB | ||
|
|
|
UFF1604CT
|
 |
Active | 400 | 16 | 125 | 1.3 | 8 | 75 | Single | 10 | -55°C to +150°C | ITO-220AB | ||
|
|
|
UFF1606CT
|
 |
Active | 600 | 16 | 125 | 1.7 | 8 | 100 | Single | 10 | -55°C to +150°C | ITO-220AB | ||
|
|
|
UFF1608CT
|
 |
Active | 800 | 16 | 125 | 1.7 | 8 | 100 | Single | 10 | -55°C to +150°C | ITO-220AB | ||
|
|
|
UFF20005CT
|
 |
Active | 50 | 20 | 150 | 1 | 10 | 50 | Single | 10 | -55°C to +150°C | ITO-220AB | ||
|
|
|
UFF2001CT
|
 |
Active | 100 | 20 | 150 | 1 | 10 | 50 | Single | 10 | -55°C to +150°C | ITO-220AB | ||
|
|
|
UFF2002CT
|
 |
Active | 200 | 20 | 150 | 1 | 10 | 50 | Single | 10 | -55°C to +150°C | ITO-220AB | ||
|
|
|
UFF2003CT
|
 |
Active | 300 | 20 | 150 | 1.3 | 10 | 75 | Single | 10 | -55°C to +150°C | ITO-220AB | ||
|
|
|
UFF2004CT
|
 |
Active | 400 | 20 | 150 | 1.3 | 10 | 75 | Single | 10 | -55°C to +150°C | ITO-220AB | ||
|
|
|
UFF2006CT
|
 |
Active | 600 | 20 | 150 | 1.7 | 10 | 100 | Single | 10 | -55°C to +150°C | ITO-220AB | ||
|
|
|
UFF2008CT
|
 |
Active | 800 | 20 | 150 | 1.7 | 10 | 100 | Single | 10 | -55°C to +150°C | ITO-220AB | ||
|
|
|

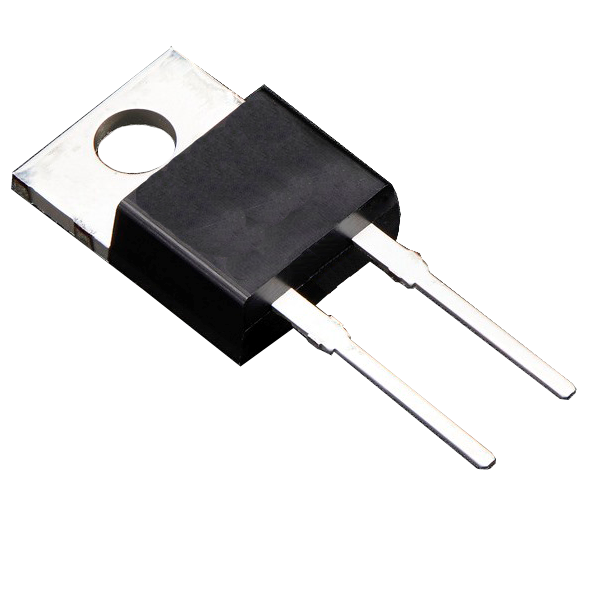

UF801
|
 |
Active | 100 | 8 | 80 | 0.95 | 8 | 35 | Single | 10 | -55°C to +150°C | TO-220AC | ||
|
|
|
UF802
|
 |
Active | 200 | 8 | 80 | 0.95 | 8 | 35 | Single | 10 | -55°C to +150°C | TO-220AC | ||
|
|
|
UF803
|
 |
Active | 300 | 8 | 80 | 1.3 | 8 | 35 | Single | 10 | -55°C to +150°C | TO-220AC | ||
|
|
|
UF804
|
 |
Active | 400 | 8 | 80 | 1.3 | 8 | 35 | Single | 10 | -55°C to +150°C | TO-220AC | ||
|
|
|
UF806
|
 |
Active | 600 | 8 | 80 | 1.5 | 8 | 35 | Single | 10 | -55°C to +150°C | TO-220AC | ||
|
|
|
UF812
|
 |
Active | 1200 | 8 | 100 | 3.3 | 8 | 55 | Single | 20 | 175°C | TO-220AC | ||
|
|
|
UF10005
|
 |
Active | 50 | 10 | 125 | 1.1 | 10 | 35 | Single | 10 | -55°C to +150°C | TO-220AC | ||
|
|
|
UF1001
|
 |
Active | 100 | 10 | 125 | 1.1 | 10 | 35 | Single | 10 | -55°C to +150°C | TO-220AC | ||
|
|
|
UF1002
|
 |
Active | 200 | 10 | 125 | 1.1 | 10 | 35 | Single | 10 | -55°C to +150°C | TO-220AC | ||
|
|
|
UF1003
|
 |
Active | 300 | 10 | 125 | 1.3 | 10 | 35 | Single | 10 | -55°C to +150°C | TO-220AC | ||
|
|
|
UFF8005
|
 |
Active | 50 | 8 | 125 | 1 | 8 | 50 | Single | 10 | -55°C to +150°C | ITO-220AC | ||
|
|
|
UFF801
|
 |
Active | 100 | 8 | 125 | 1 | 8 | 50 | Single | 10 | -55°C to +150°C | ITO-220AC | ||
|
|
|
UFF802
|
 |
Active | 200 | 8 | 125 | 1 | 8 | 50 | Single | 10 | -55°C to +150°C | ITO-220AC | ||
|
|
|
UFF803
|
 |
Active | 300 | 8 | 125 | 1.3 | 8 | 75 | Single | 10 | -55°C to +150°C | ITO-220AC | ||
|
|
|
UFF804
|
 |
Active | 400 | 8 | 125 | 1.3 | 8 | 75 | Single | 10 | -55°C to +150°C | ITO-220AC | ||
|
|
|
UFF806
|
 |
Active | 600 | 8 | 125 | 1.7 | 8 | 100 | Single | 10 | -55°C to +150°C | ITO-220AC | ||
|
|
|
UFF808
|
 |
Active | 800 | 8 | 125 | 1.7 | 8 | 100 | Single | 10 | -55°C to +150°C | ITO-220AC | ||
|
|
|
UFF10005
|
 |
Active | 50 | 10 | 125 | 1.1 | 10 | 35 | Single | 10 | -55°C to +150°C | ITO-220AC | ||
|
|
|
UFF1001
|
 |
Active | 100 | 10 | 125 | 1.1 | 10 | 35 | Single | 10 | -55°C to +150°C | ITO-220AC | ||
|
|
|
UFF1002
|
 |
Active | 200 | 10 | 125 | 1.1 | 10 | 35 | Single | 10 | -55°C to +150°C | ITO-220AC | ||
|
|
|
UFF1003
|
 |
Active | 300 | 10 | 125 | 1.3 | 10 | 35 | Single | 10 | -55°C to +150°C | ITO-220AC | ||
|
|
|
UFF1004
|
 |
Active | 400 | 10 | 125 | 1.3 | 10 | 50 | Single | 10 | -55°C to +150°C | ITO-220AC | ||
|
|
|
UFF1006
|
 |
Active | 600 | 10 | 125 | 1.5 | 10 | 50 | Single | 10 | -55°C to +150°C | ITO-220AC | ||
|
|
|
UF1004
|
 |
Active | 400 | 10 | 125 | 1.3 | 10 | 50 | Single | 10 | -55°C to +150°C | TO-220AC | ||
|
|
|
UF1006
|
 |
Active | 600 | 10 | 125 | 1.5 | 10 | 50 | Single | 10 | -55°C to +150°C | TO-220AC | ||
|
|
|
UF1206
|
 |
Active | 600 | 12 | 150 | 1.5 | 12 | 50 | Single | 5 | -55°C to +150°C | TO-220AC | ||
|
|
|
UF1501
|
 |
Active | 100 | 15 | 200 | 1.05 | 15 | 35 | Single | 10 | -65°C to +175°C | TO-220AC | ||
|
|
|
UF1502
|
 |
Active | 200 | 15 | 200 | 1.05 | 15 | 35 | Single | 10 | -65°C to +175°C | TO-220AC | ||
|
|
|
UF1503
|
 |
Active | 300 | 15 | 200 | 1.25 | 15 | 50 | Single | 10 | -65°C to +175°C | TO-220AC | ||
|
|
|
UF1504
|
 |
Active | 400 | 15 | 200 | 1.25 | 15 | 50 | Single | 10 | -65°C to +175°C | TO-220AC | ||
|
|
|
UF1506
|
 |
Active | 600 | 15 | 250 | 2.2 | 15 | 30 | Single | 10 | -40°C to +175°C | TO-220AC | ||
|
|
|
UF1512
|
 |
Active | 1200 | 15 | 150 | 3.3 | 15 | 55 | Single | 20 | 175°C | TO-220AC | ||
|
|
|
UFF6012T
|
 |
Active | 1200 | 60 | 500 | 3.3 | 60 | 80 | Single | 50 | -55°C to +175°C | TO-247-2L | ||
|
|
|
UFF6006T
|
 |
Active | 600 | 60 | 600 | 1.45 | 60 | 35 | Single | 10 | -55°C to +175°C | TO-247-2L | ||
|
|
|
UF3006
|
 |
Active | 600 | 30 | 320 | 2.6 | 30 | 40 | Single | 10 | -40°C to +175°C | TO-220AC | ||
|
|
|
UF3006L
|
 |
Active | 600 | 30 | 300 | 1.6 | 30 | 50 | Single | 10 | -40°C to +175°C | TO-220AC | ||
|
|
|
UF3012
|
 |
Active | 1200 | 30 | 250 | 3.3 | 30 | 55 | Single | 30 | 175°C | TO-220AC |
