MOSFET Module

All	Datasheet	PART NO.	Picture	Product Status	BVDSS(V)	RDS(on) (mΩ)Typ	RDS(on) (mΩ)Max	ID(A) @25℃	ID(A) @100℃	Channel	VGS(V)	VTH(V)Min	VTH(V)Max	Package	Configuration	CAD Model	Configuration

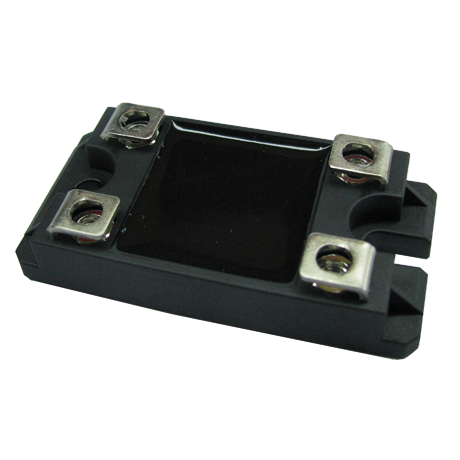

		DADMI056N090Z1B		Active	900	-	146	56	32	N	±30	3.5	6.5	SOT-227	Single
		DAEMI040N120Z1B		Active	1200	-	322	40	24	N	±30	3.5	6.5	SOT-227	Single
		DADMI040N120Z1B		Active	1200	-	322	40	24	N	±30	3.5	6.5	SOT-227	Single
		DAEMI056N090Z1B		Active	900	-	146	56	32	N	±30	3.5	6.5	SOT-227	Single
		DAMI160N200		Active	200	10	10.3	160	130	N	±20	2	3.5	SOT-227	Single
		DAMI220N200		Active	200	7.5	7.8	220	180	N	±20	2	3.5	SOT-227	Single
		DAMI280N200		Active	200	5.8	6	280	210	N	±20	2	3.5	SOT-227	Single
		DAMI220N150		Active	150	6.5	6.7	220	150	N	±20	2	3.5	SOT-227	Single
		DAMI300N150		Active	150	4.3	4.5	300	180	N	±20	2	3.5	SOT-227	Single
		DAMI360N150		Active	150	3	3.2	360	220	N	±20	2	3.5	SOT-227	Single
		DAMI160N100		Active	100	3.5	4	160	120	N	±20	2.5	3.5	SOT-227	Single
		DAMI320N100		Active	100	1.9	2.1	320	280	N	±20	2.5	3.5	SOT-227	Single
		DAMI450N100		Active	100	1.3	1.5	450	320	N	±20	2.5	3.5	SOT-227	Single
		DAMI560N100		Active	100	1	1.1	560	445	N	±20	2.5	3.5	SOT-227	Single
		DAMI330N60		Active	60	1.2	1.4	330	260	N	±20	2.5	3.5	SOT-227	Single
		DAMI500N60		Active	60	0.9	1.1	500	400	N	±20	2.5	3.5	SOT-227	Single
		DAMI660N60		Active	60	0.8	1	660	500	N	±20	2.5	3.5	SOT-227	Single
		DAMIA320N200		Active	200	4.64	NA	320	190	N	NA	NA	NA	SOT-227H	Single
		DAMIA380N200		Active	200	3.88	NA	380	220	N	NA	NA	NA	SOT-227H	Single
		DAMIA440N200		Active	200	3.32	NA	440	260	N	NA	NA	NA	SOT-227H	Single
		DAMIA500N200		Active	200	3	NA	500	300	N	NA	NA	NA	SOT-227H	Single
		DAMIA460N150		Active	150	2.6	NA	460	270	N	NA	NA	NA	SOT-227H	Single
		DAMIA560N150		Active	150	2.2	NA	560	330	N	NA	NA	NA	SOT-227H	Single
		DAMIA660N150		Active	150	1.86	NA	660	400	N	NA	NA	NA	SOT-227H	Single
		DAMIA760N150		Active	150	1.6	NA	760	450	N	NA	NA	NA	SOT-227H	Single
		DAMIA700N100		Active	100	0.8	NA	700	520	N	NA	NA	NA	SOT-227H	Single
		DAMIA830N100		Active	100	0.67	NA	830	620	N	NA	NA	NA	SOT-227H	Single
		DAMIA960N100		Active	100	0.57	NA	960	720	N	NA	NA	NA	SOT-227H	Single
		DAMIA1100N100		Active	100	0.6	0.8	1100	880	N	±20	2.5	3.5	SOT-227H	Single
		DAMIA800N60		Active	60	0.64	NA	800	600	N	NA	NA	NA	SOT-227H	Single
		DAMIA960N60		Active	60	0.53	NA	960	720	N	NA	NA	NA	SOT-227H	Single
		DAMIA1100N60		Active	60	0.45	NA	1100	820	N	NA	NA	NA	SOT-227H	Single
		DAMIA1200N60		Active	60	0.4	NA	1200	900	N	NA	NA	NA	SOT-227H	Single

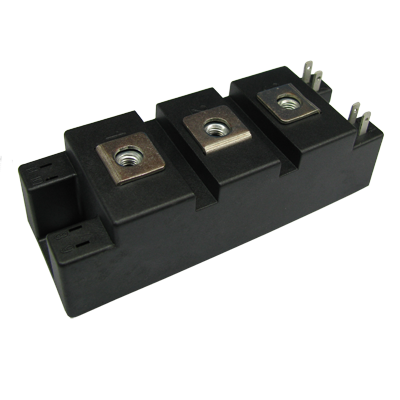

		DADMH040N120Z1B		New	1200	-	322	40	24	N	±30	3.5	6.5	HB-9434	Half-Bridge
		DADMH056N090Z1B		New	900	-	146	56	32	N	±30	3.5	6.5	HB-9434	Half-Bridge
		DAMH50N500H		Active	500	110	120	50	35	N	±20	2	4	HB-9434	Half-Bridge
		DAMH75N500H		Active	500	65	75	75	55	N	±20	2	4	HB-9434	Half-Bridge
		DAMH160N200		Active	200	10	10.3	160	110	N	±20	2	3.5	HB-9434	Half-Bridge
		DAMH220N200		Active	200	7.5	7.8	220	140	N	±20	2	3.5	HB-9434	Half-Bridge
		DAMH280N200		Active	200	5.8	6	280	180	N	±20	2	3.5	HB-9434	Half-Bridge
		DAMH320N200		Active	200	4.64	NA	320	190	N	NA	NA	NA	HB-9434	Half-Bridge
		DAMH380N200		Active	200	3.8	NA	380	220	N	NA	NA	NA	HB-9434	Half-Bridge
		DAMH220N150		Active	150	6.5	6.7	220	150	N	±20	2	3.5	HB-9434	Half-Bridge
		DAMH300N150		Active	150	4.3	4.5	300	180	N	±20	2	3.5	HB-9434	Half-Bridge
		DAMH360N150		Active	150	3	3.2	360	220	N	±20	2	3.5	HB-9434	Half-Bridge
		DAMH460N150		Active	150	2.6	NA	460	270	N	NA	NA	NA	HB-9434	Half-Bridge
		DAMH560N150		Active	150	2.2	NA	560	330	N	NA	NA	NA	HB-9434	Half-Bridge
		DAMH320N100		Active	100	1.9	2.1	320	250	N	±20	2.5	3.5	HB-9434	Half-Bridge
		DAMH450N100		Active	100	1.3	1.5	450	320	N	±20	2.5	3.5	HB-9434	Half-Bridge
		DAMH560N100		Active	100	1	1.1	560	460	N	±20	2.5	3.5	HB-9434	Half-Bridge
		DAMH700N100		Active	100	0.8	NA	700	520	N	NA	NA	NA	HB-9434	Half-Bridge
		DAMH830N100		Active	100	0.67	NA	830	620	N	NA	NA	NA	HB-9434	Half-Bridge
		DAMH360N60		Active	60	1.4	NA	360	300	N	NA	NA	NA	HB-9434	Half-Bridge
		DAMH500N60		Active	60	0.9	NA	500	400	N	NA	NA	NA	HB-9434	Half-Bridge
		DAMH660N60		Active	60	0.8	NA	660	500	N	NA	NA	NA	HB-9434	Half-Bridge
		DAMH800N60		Active	60	0.64	NA	800	600	N	NA	NA	NA	HB-9434	Half-Bridge
		DAMH960N60		Active	60	0.53	NA	960	720	N	NA	NA	NA	HB-9434	Half-Bridge
