Datasheet | PART NO. | Picture | Product Status | VDC (V) | IF (Per Pkg) (A) | IF (Per Diode) (A) | VF @ Tj=25°C typ. (V) | Configuration | Package | CAD Model | Configuration |
|
|
 |
CSRK2x250-065K1B
|
 |
Active | 650 | 500 | 250 | 1.5 | Common Cathode | HEAVY THREE TOWER KA |
 |
 |
|
|
|
CSRK2x300-065K1B
|
 |
Active | 650 | 600 | 300 | 1.5 | Common Cathode | HEAVY THREE TOWER KA |
 |
 |
|
|
|
CSRK2x350-065K1B
|
 |
Active | 650 | 700 | 350 | 1.5 | Common Cathode | HEAVY THREE TOWER KA |
|
 |
|
|
|
CSRK2x400-065K1B
|
 |
Active | 650 | 800 | 400 | 1.5 | Common Cathode | HEAVY THREE TOWER KA |
 |
 |
|
|
|
CSRP2X450-120F1B
|
 |

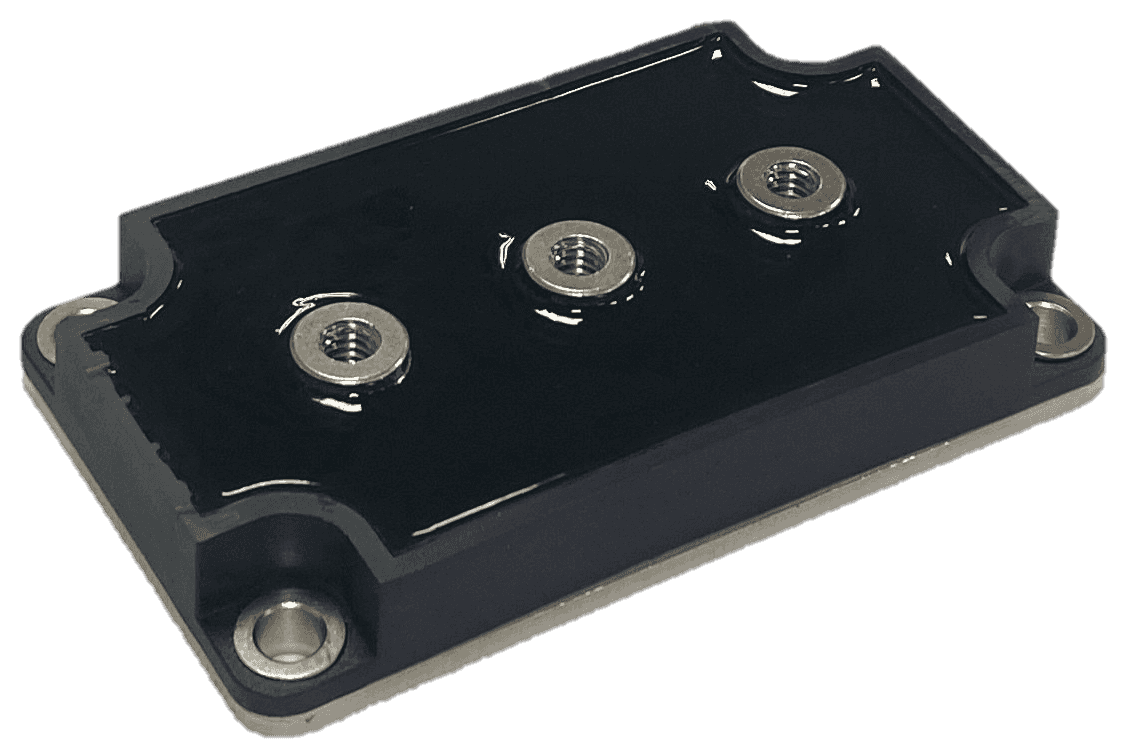

NRND | 1200 | 900 | 450 | 1.6 | ADR Doubler | 10662L |
|
 |
|
|
|
CSRP2X450-120F2B
|
 |
Active | 1200 | 900 | 450 | 1.5 | ADR Doubler | 10662L |
|
 |
|
|
|
CSRP2X500-120F2B
|
 |
Active | 1200 | 1000 | 500 | 1.5 | ADR Doubler | 10662L |
|
 |
|
|
|
CSRP2X600-120F1B
|
 |
NRND | 1200 | 1200 | 600 | 1.5 | ADR Doubler | 10662L |
|
 |
|
|
|
CSRI2X25-065P3B
|
 |

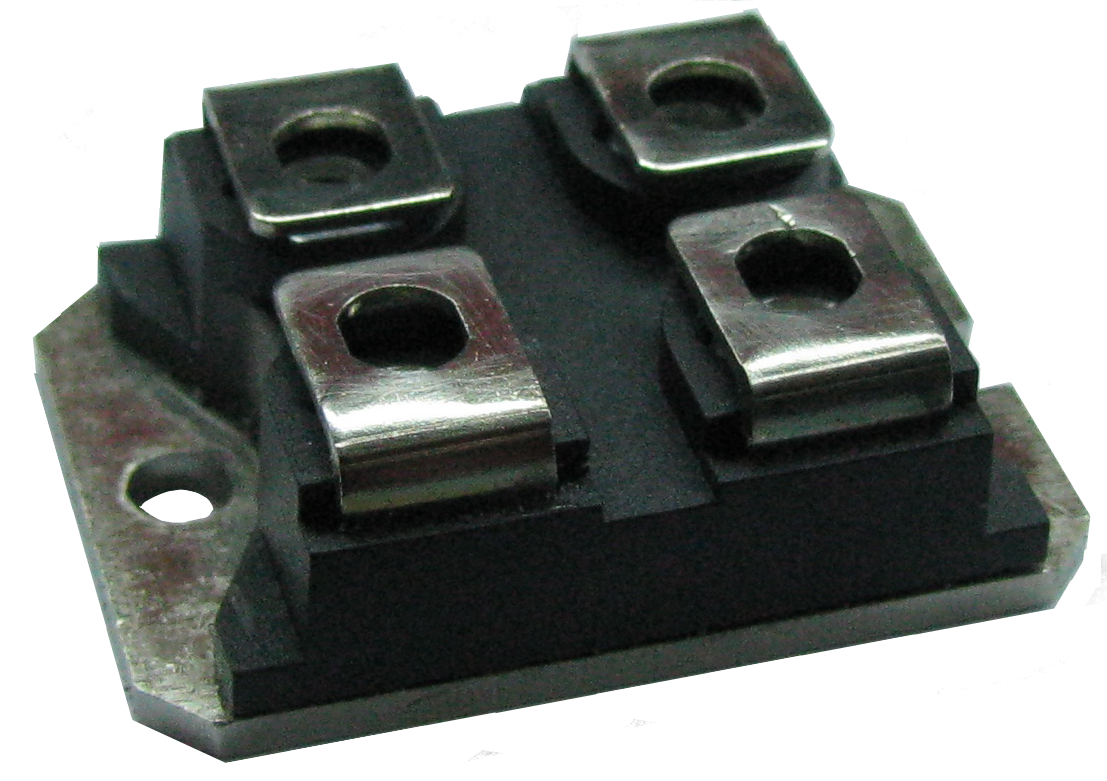

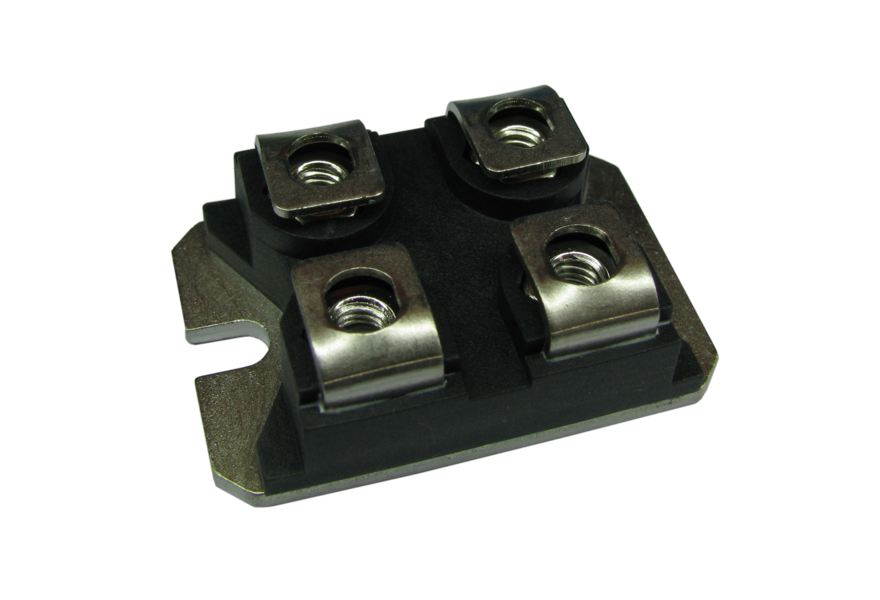

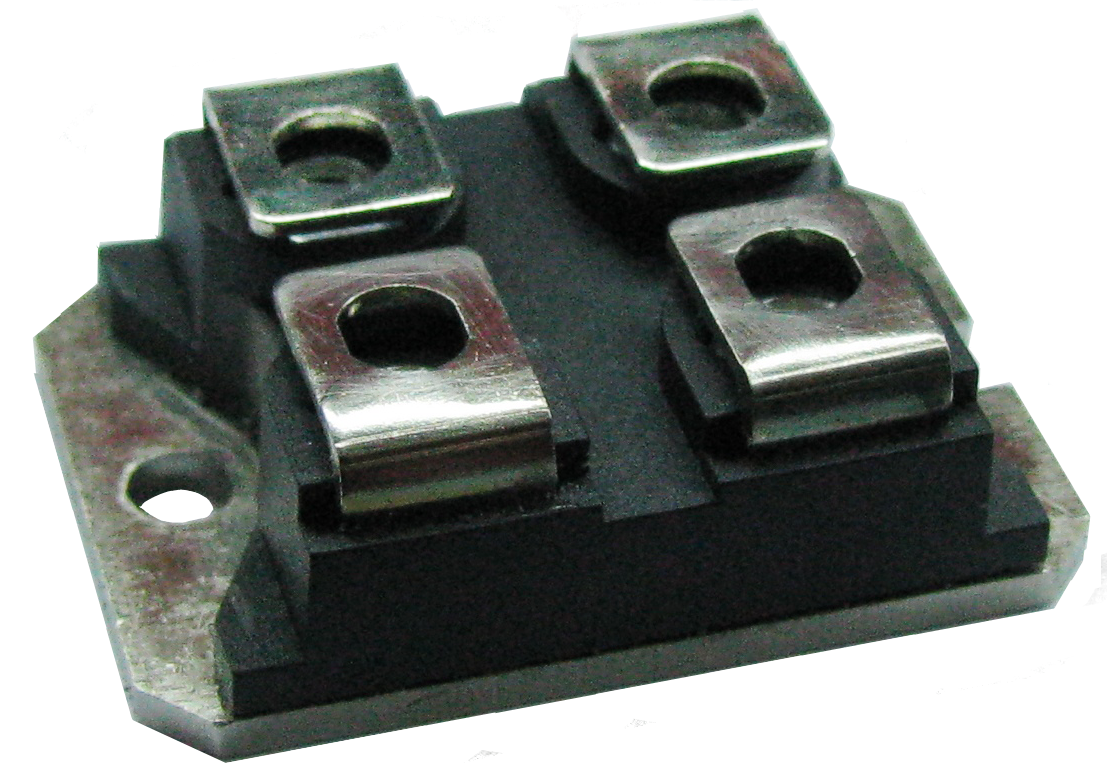

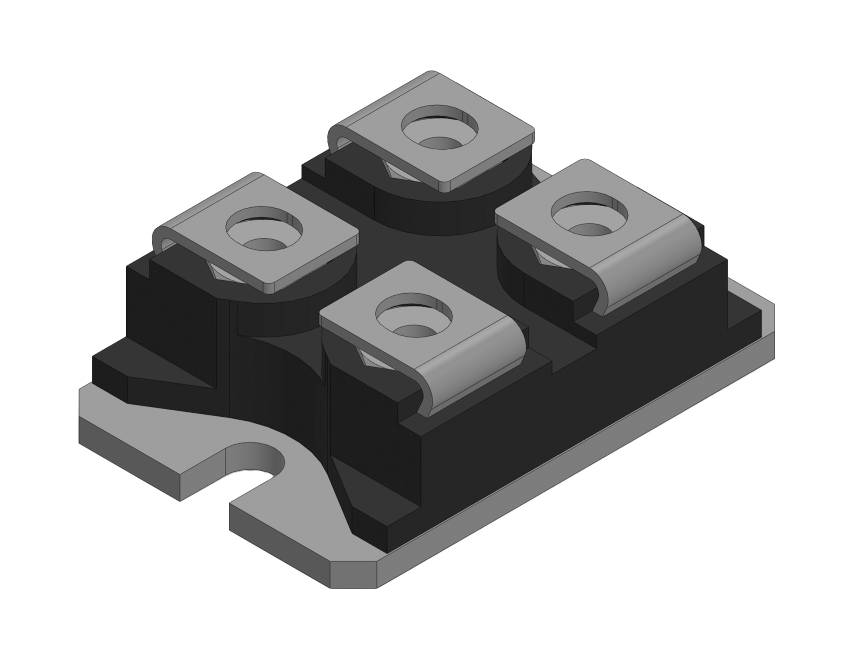

Active | 650 | 50 | 25 | 1.5 | Parallel | SOT-227 |
|
 |
|
|
|
CSRI2X50-065P3B
|
 |
Active | 650 | 100 | 50 | 1.5 | Parallel | SOT-227 |
|
 |
|
|
|
CSRI2X75-065P3B
|
 |
Active | 650 | 150 | 75 | 1.5 | Parallel | SOT-227 |
|
 |
|
|
|
CSRI2X100-065P3B
|
 |
Active | 650 | 200 | 100 | 1.5 | Parallel | SOT-227 |
|
 |
|
|
|
CSRI2X140-065P3B
|
 |
Active | 650 | 280 | 140 | 1.5 | Parallel | SOT-227 |
|
 |
|
|
|
CSRI2X25-120P3B
|
 |
Active | 1200 | 50 | 25 | 1.5 | Parallel | SOT-227 |
|
 |
|
|
|
CSRI2X50-120P3B
|
 |
Active | 1200 | 100 | 50 | 1.5 | Parallel | SOT-227 |
|
 |
|
|
|
CSRI2X75-120P3B
|
 |
Active | 1200 | 150 | 75 | 1.5 | Parallel | SOT-227 |
|
 |
|
|
|
CSRI2X100-120P3B
|
 |
Active | 1200 | 200 | 100 | 1.5 | Parallel | SOT-227 |
|
 |
|
|
|
CSRI2X50-170P2B
|
 |
Active | 1700 | 100 | 50 | 1.6 | Parallel | SOT-227 |
|
 |
|
|
|
CSRI2X100-170P2B
|
 |
Active | 1700 | 200 | 100 | 1.6 | Parallel | SOT-227 |
|
 |
|
|
|
CSRI4X25-065L2B
|
 |
Active | 650 | 25 | 25 | 1.5 | Full Bridge | SOT-227 |
|
 |
|
|
|
CSRI4X25-120L3B
|
 |
Active | 1200 | 25 | 25 | 1.5 | Full Bridge | SOT-227 |
|
 |
|
|
|
CSRI4X50-065L2B
|
 |
Active | 650 | 50 | 50 | 1.5 | Full Bridge | SOT-227 |
|
 |
|
|
|
CSRI4X50-120L3B
|
 |
Active | 1200 | 50 | 50 | 1.5 | Full Bridge | SOT-227 |
|
 |
|
|
|
CSRI4X50-170L2B
|
 |
Active | 1700 | 50 | 50 | 1.6 | Full Bridge | SOT-227 |
|
 |
|
|
|
CSRI2X70-120
|
 |
NRND | 1200 | 140 | 70 | 1.6 | Parallel | SOT-227 |
|
 |
|
|
|
CSRI2X100-120
|
 |
NRND | 1200 | 200 | 100 | 1.6 | Parallel | SOT-227 |
|
 |
|
|
|
CSRI2X100-065P1B
|
 |
NRND | 650 | 200 | 100 | 1.5 | Parallel | SOT-227 |
|
 |
|
|
|
CSRI2X140-065P1B
|
 |
NRND | 650 | 280 | 140 | 1.5 | Parallel | SOT-227 |
|
 |
|
|
|
CSRI2X100-065P2B
|
 |
NRND | 650 | 200 | 100 | 1.5 | Parallel | SOT-227 |
|
 |
|
|
|
CSRI2X50-120P1B
|
 |
NRND | 1200 | 100 | 50 | 1.6 | Parallel | SOT-227 |
|
 |
|
|
|
CSRI2X100-120P1B
|
 |
NRND | 1200 | 200 | 100 | 1.6 | Parallel | SOT-227 |
|
 |
|
|
|
CSRI2X100-120P2B
|
 |
NRND | 1200 | 200 | 100 | 1.55 | Parallel | SOT-227 |
|
 |
|
|
|
CSRI2X140-120P1B
|
 |
NRND | 1200 | 280 | 140 | 1.6 | Parallel | SOT-227 |
|
 |
|
|
|
CSRI2X100-170P1B
|
 |
NRND | 1700 | 200 | 100 | 1.6 | Parallel | SOT-227 |
|
 |
